Install and Configure VMware ESXi Dump Collector

February 9, 2013 Objective 6 Advanced Troubleshooting No comments

What is VMware ESXi Dump Collector?

ESXi hosts can be configured to dump the VMkernel memory to a network server rather than to a local disk when the system has encountered a critical failure. The Collector collects the dumps across the network. This is useful for ESXi hosts that are configured by the VMware Auto Deploy process and might not have local storage. A core dump is the state of working memory in the event of host failure.

Prerequisites

Verify that you have administrator privileges
Verify that the host machine has Windows Installer 3.0 or later.
Verify that the host machine has a supported processor and operating system. The Dump Collector supports the same processors and operating systems as vCenter Server. See vCenter Server Software Requirements and vCenter Server and vSphere Client Hardware Requirements.
Verify that the host machine has a valid IPv4 address. You can install the Dump Collector on a machine in an IPv4-only or IPv4/IPv6 mixed-mode network environment, but you cannot install the Dump Collector on a machine in an IPv6-only environment.
If you are using a network location for the Dump Collector repository, make sure the network location is mounted.

Install and Configure

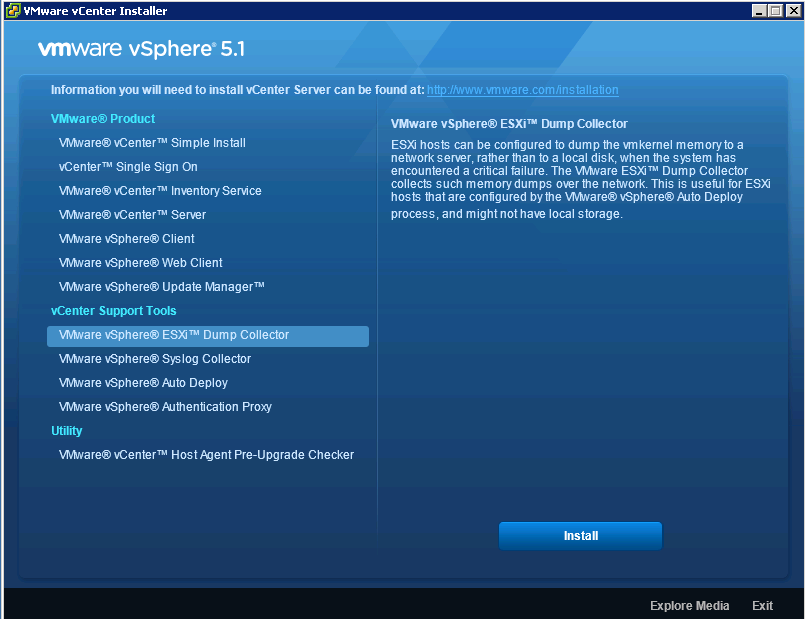

Open the vCenter Installer and select ESXi Dump Collector

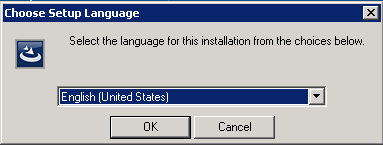

Select your language

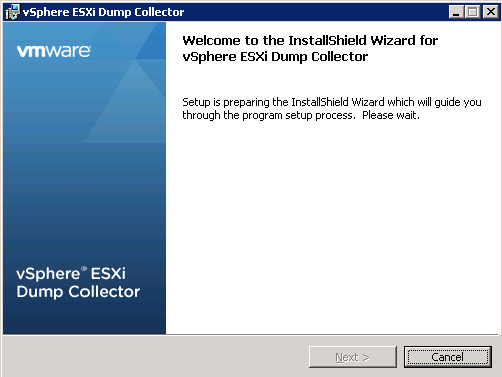

Select Next

Click Next

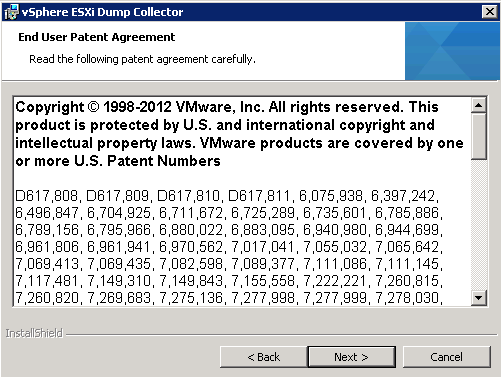

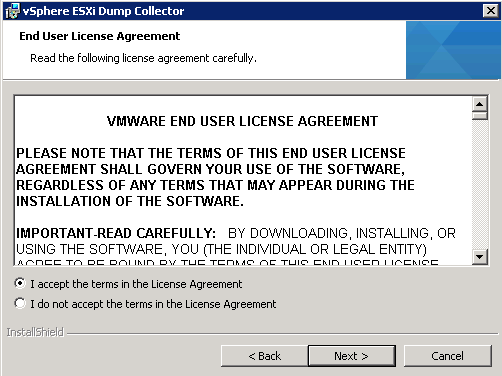

Click I accept > Next

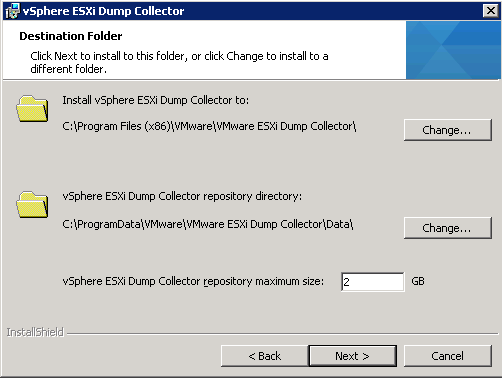

Select the folder locations you want

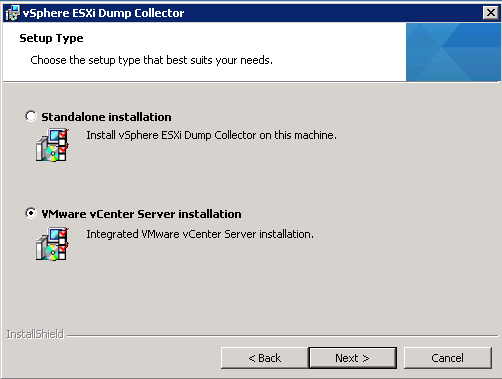

Select the type of installation

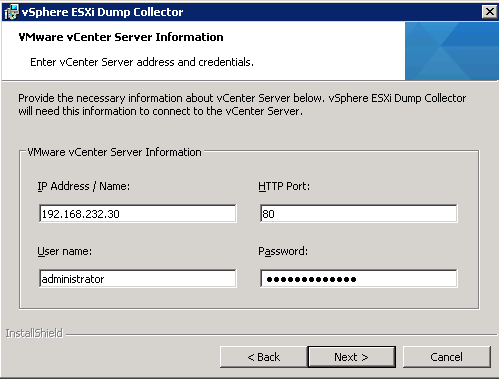

Enter the vCenter details

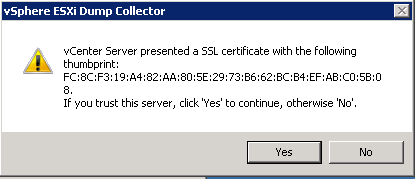

Say Yes to the SSL Cert

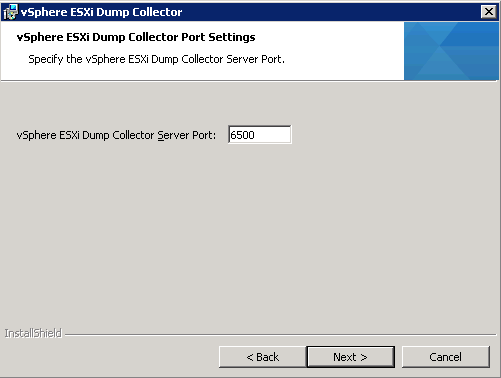

Select the Port

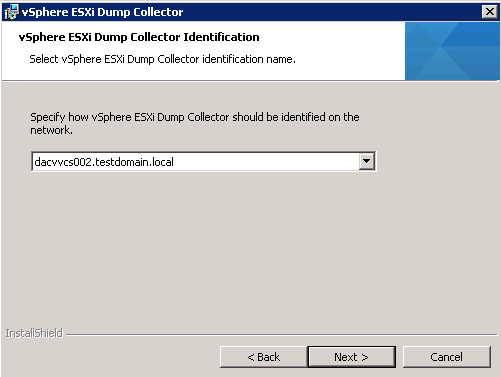

Specify the name on the network

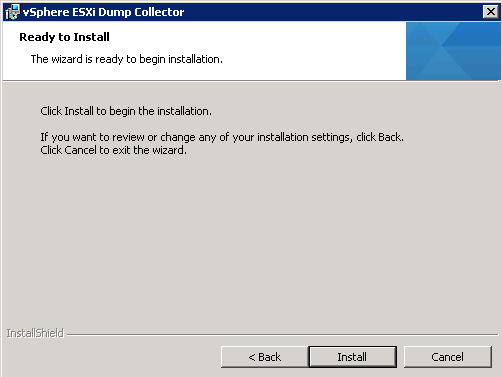

Click Install

You can then see the icon for the VMware ESXi Dump Collector on the Home Page

Set up an ESXi system to use ESXi Dump Collector by running esxcli
system coredump in the local ESXi shell or by using vCLI

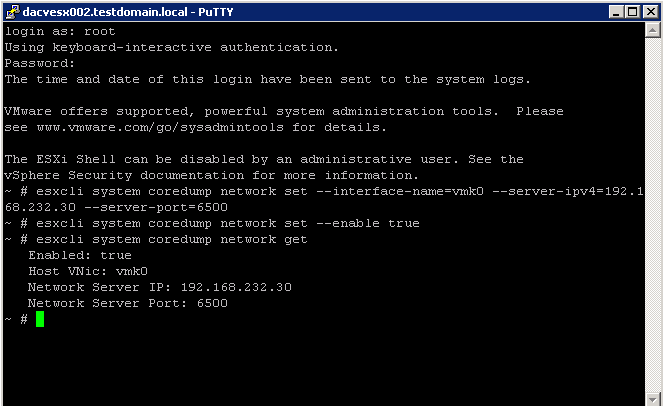

Run esxcli system coredump network set –interface-name=vmk0 –server-ipv4=192.168.232.30 –server-port=6500
Run esxcli system coredump network set –enable true
Run esxcli system coredump network get to check everything is setup as expected

Under Home > Administration > VMware ESXi Dump Collector, you will now see the following

VMware Dump Collector Doc

http://kb.vmware.com/selfservice/microsites/search.do?language=en_US&cmd=displayKC&externalId=1032051

Installation of Syslog Collector

February 9, 2013 Objective 6 Advanced Troubleshooting No comments

What is Syslog Collector?

You can install the Syslog Collector on the same machine as the associated vCenter Server, or on a different machine that has network connection to the vCenter Server. The Syslog Collector service binds to an IPv4 address for communication with vCenter Server, and does not support IPv6. The vCenter Server can be on a host machine in an IPv4-only, IPv4/IPv6 mixed-mode, or IPv6-only network environment, but the machine that connects to the vCenter Server through the vSphere Client must have an IPv4 address for the Syslog Collector service to work

Syslog Collector is included in the vCenter appliance installation by default.

Prerequisites

Verify that you have administrator privileges.
Verify that the host machine has Windows Installer 3.0 or later.
Verify that the host machine has a supported processor and operating system. The Syslog Collector supports the same processors and operating systems as vCenter Server. See vCenter Server Software Requirements and vCenter Server and vSphere Client Hardware Requirements.
Determine whether to install the Syslog Collector as a standalone instance or to integrate the Syslog Collector with a vCenter Server.
The Syslog Collector is not supported for integration with vCenter Server versions earlier than version 5.0.
Verify that the host machine has a valid IPv4 address. You can install the Syslog Collector on a machine in an IPv4-only or IPv4/IPv6 mixed-mode network environment, but you cannot install the Syslog Collector on a machine in an IPv6-only environment

Instructions for Install
