Install and Configure Update Manager Download Service

February 7, 2013 Objective 5 Operational Maintenance No comments

What is UMDS?

VMware vSphere Update Manager Download Service (UMDS) is an optional module of Update Manager. UMDS downloads upgrades for virtual appliances, patch metadata, patch binaries, and notifications that would not otherwise be available to the Update Manager server.

For security reasons and deployment restrictions, vSphere, including Update Manager, might be installed in a secured network that is disconnected from other local networks and the Internet. Update Manager requires access to patch information to function properly. In such an environment, you can install UMDS on a computer that has Internet access to download upgrades, patch binaries, and patch metadata, and then export the downloads to a portable media drive so that they become accessible to the Update Manager server.

In a deployment where the machine on which Update Manager is installed has no Internet access, but is connected to a server that has Internet access, you can automate the export process and transfer files from UMDS to the Update Manager server by using a Web server on the machine on which UMDS is installed.

UMDS 5.1 supports patch recalls and notifications. A patch is recalled if the released patch has problems or potential issues. After you download patch data and notifications with UMDS, and export the downloads so that they become available to the Update Manager server, Update Manager deletes the recalled patches and displays the notifications on the Update Manager Notifications tab.

Installing UMDS

Pre-Requisites

  • It will not install on a Windows 2008 R2 Server running as a DC
  • You cannot upgrade UMDS 4.x to UMDS 5.1, but under certain conditions you can perform a fresh installation of UMDS 5.1 and use an existing patch store from UMDS 4.x. You can install UMDS only on 64-bit machines.
  • Before installing UMDS, you must create a database instance and configure it to ensure that all tables are placed in it. You must configure a 32-bit DSN and test the DSN from ODBC. If you are using Microsoft SQL Server 2008 R2 Express, you can install and configure the database when you install UMDS
  • You should not install UMDS 5.1 with an existing UMDS 4.x download directory if your environment contains both Update Manager 4.x and Update Manager 5.x instances. In such a case, you need a UMDS 4.x and a UMDS 5.x installation on two separate machines, in order to export updates for the respective Update Manager versions.
  • UMDS and Update Manager must be installed on different machines
  • Ensure that the machine on which you install UMDS has Internet access

Procedure

  • Insert the VMware vSphere Update Manager installation DVD into the DVD drive of the Windows server that will host UMDS.
  • Browse to the umds folder on the DVD and run VMware-UMDS.exe. (One of the first folders you will see!)
  • Select the language for the installation and click OK
  • (Optional) If the wizard prompts you, install the required items such as Windows Installer 4.5. This step is required only if Windows Installer 4.5 is not present on your machine and you must perform it the first time you install a vSphere 5.x product. After the system restarts, the installer launches again.
  • Review the Welcome page and click Next.
  • Read the patent agreement and click Next.
  • Accept the terms in the license agreement and click Next.
  • Select the database options and click Next.
  • If you do not have an existing database, select Install a Microsoft SQL Server 2008 R2 Express instance (for small scale deployments).
  • If you want to use an existing database, select Use an existing supported database and select your database from the list of DSNs. If the DSN does not use Windows NT authentication, enter the user name and password for the DSN and click Next.
  • Enter the Update Manager Download Service proxy settings and click Next.
  • Select the Update Manager Download Service installation and patch download directories and click Next.
  • If you do not want to use the default locations, you can click Change to browse to a different directory. You can select the patch store to be an existing download directory from a previous UMDS 4.x installation and reuse the applicable downloaded updates in UMDS 5.1. After you associate an existing download directory with UMDS 5.1, you cannot use it with earlier UMDS versions.
  • (Optional) In the warning message about the disk free space, click OK.
  • Click Install to begin the installation.
  • Click OK in the Warning message notifying you that .NET Framework 3.5 SP1 is not installed.
  • The UMDS installer installs the prerequisite before the actual product installation.
  • Click Finish.
  • Reboot

Setting Up and Using UMDS

You can set up UMDS to download upgrades for virtual appliances, or patches and notifications for ESX/ESXi hosts. You can also set up UMDS to download ESX/ESXi 4.x and ESXi 5.x patch binaries, patch metadata, and notifications from third-party portals.

After you download the upgrades, patch binaries, patch metadata, and notifications, you can export the data to a Web server or a portable media drive and set up Update Manager to use a folder on the Web server or the media drive (mounted as a local disk) as a shared repository.

You can also set up UMDS to download ESX/ESXi 4.x and ESXi 5.x patches and notifications from third-party portals.

To use UMDS, the machine on which you install it must have Internet access. After you download the data you want, you can copy it to a local Web server or a portable storage device, such as a CD or USB flash drive.

The best practice is to create a script to download the patches manually and set it up as a Windows Scheduled Task that downloads the upgrades and patches automatically.

Set Up the Data to Download with UMDS

By default UMDS downloads patch binaries, patch metadata, and notifications for hosts. You can specify which patch binaries and patch metadata to download with UMDS.

  • Log in to the machine where UMDS is installed, and open a Command Prompt window.
  • Navigate to the directory where UMDS is installed.
  • The default location in 64-bit Windows is C:\Program Files (x86)\VMware\Infrastructure\Update Manager.

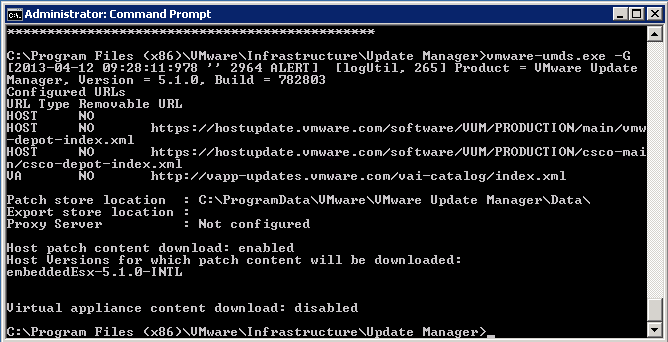

  • Check the setup by typing vmware-umds -G

umdsg

  • Specify the type of updates to download by using the commands below
  • vmware-umds.exe -s –enable-host –disable-va

UMDSEnable

  • Specify the updates to download by using the commands below to delete the versions you don’t want leaving version 5.1.0
  • vmware-umds.exe -s -d embeddedEsx-5.0.0
  • vmware-umds.exe -s -d embeddedEsx-4.1.0
  • vmware-umds.exe -s -d embeddedEsx-4.0.0

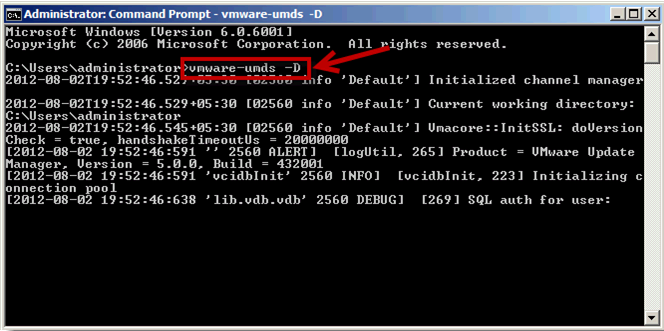

  • Next run vmware-umds.exe -D

umds1

  • Next we need to export the Downloaded Updates to a removable device which has been given the drive letter F:\
  • Type vmware-umds.exe -E –export-store F:\
  • Verify that all files are exported to the portable media drive, and then safely remove it and connect it to the machine on which the Update Manager server is installed.
  • Modify the Shared Repository Path in Update Manager to F:\
  • Note: The path can only contain one directory level, otherwise it will fail.  For example the path should be d:\repository, but it cannot be d:\repository\patches.  When it is finally exported you can then move the repository to a physical media or any portable storage device.

UMDS Commands

umds

Identify Firewall Access Rules for Update Manager

February 7, 2013 Objective 5 Operational Maintenance No comments

images

Firewall Access Rules

If you access ESXi hosts through vCenter Server, you typically protect vCenter Server using a firewall. This firewall provides basic protection for your network.
A firewall might lie between the clients and vCenter Server. Alternatively, vCenter Server and the clients can be behind the firewall, depending on your deployment. The main point is to ensure that a firewall is present at what you consider to be an entry point for the system.

Update1

ESXi Security Guide

Please see Pages 23-25 for extra Port Information

ESXi Security Guide

Use Host Profiles to manage Answer Files

February 6, 2013 Objective 5 Operational Maintenance No comments

h2p

What is an Answer File?

For hosts provisioned with Auto Deploy, the answer file contains the user input policies for a host profile. The file is created when the profile is initially applied to a particular host.
To apply a host profile to a host, the host must be placed into maintenance mode. During this process, the user is prompted to type answers for policies that are specified during host profile creation.
Placing the host into maintenance mode each time you apply a profile to the host can be costly and time consuming. A host provisioned with Auto Deploy can be rebooted while the host profile is attached to the host. After rebooting values stored in the answer file help the host provisioned with Auto Deploy to apply the profile. An answer file is created that contains a series of key value pairs for the user input options.

Check Answer File Status

The answer file status indicates the state of the answer file. The status of an answer file can be

  • Complete
  • Incomplete
  • Missing
  • Unknown

Prerequisites
The answer file status can only be checked when the host profile is attached to a host.

Procedure

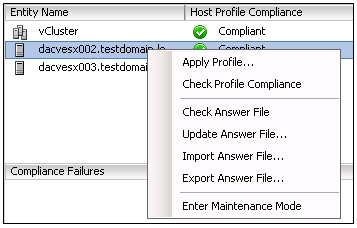

  • In the host profiles view, click Check Answer File.

AnswerFileStatus

The Answer File Status for the host profile is updated. The status indicates one of the following states:

  • Incomplete The answer file is missing some of the required user input answers.
  • Complete The answer file has all of the user input answers needed.
  • Unknown The host and associated profile exist but the status

AnswerFile

Update Answer File

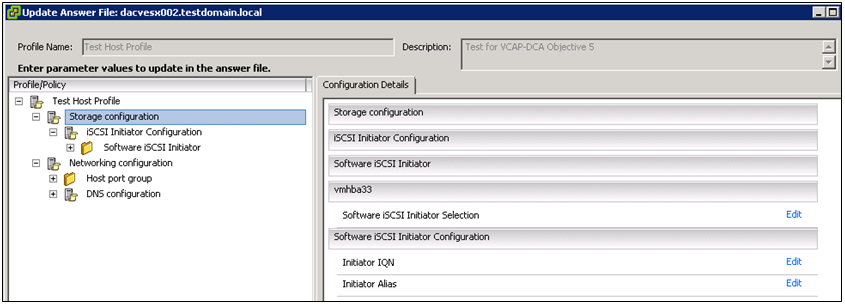

  • Right click on a host or cluster and select Update Answer File

UpdateAnswerFile2

  • Adjust the Answer File

Use Host Profiles to deploy vDS and vStorage Policies

February 6, 2013 Objective 5 Operational Maintenance No comments

h2p

vDS Setup using Host Profiles

Host Profiles is the recommended method for deploying a vDS over a large population of similarly configured hosts.

vds

Considerations for using Host Profiles for Deploying vDS

  • Target hosts must be in Maintenance Mode. This means all VMs must be powered off or migrated to other hosts.
  • An ESX Host Profile can be applied to ESX and ESXi hosts. An ESXi Host Profile can only be applied to an ESXi Host. If you have a mix of ESX and ESXi hosts, then create the Host Profile from an ESX host. The Host Profile feature in vCenter Server is able to translate and apply the ESX Service Console definition to an ESXi VMkernel port for management access.

Process Overview

  • Create vDS (without any associated hosts)
  • Create Distributed Virtual Port Groups on vDS to match existing or required environment
  • Add host to vDS and migrate vmnics to dvUplinks and Virtual Ports to DV Port Groups
  • Delete Standard Switch from host
  • Create Host Profile of Reference Host
  • Place candidate host to have the profile applied in Maintenance Mode
  • Attach and apply host profile to candidate hosts
  • Migrate VM networking for VMs and take hosts out of Maintenance Mode.

Detailed Overview

For a more detailed description of the above steps read pages 24 to 28 of the document below from VMware

VMware vNetwork Distributed Switch: Migration and Configuration

http://www.vmware.com/files/pdf/techpaper/VMW-Host-Profiles-Tech-Overview.pdf

Summary of Migration Methods

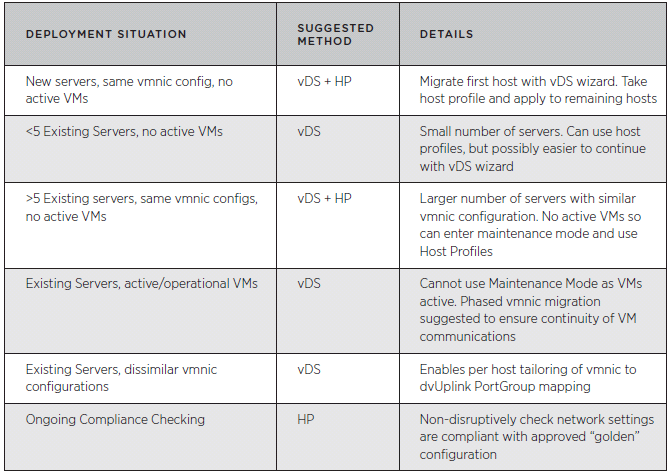

The table below summarizes the deployment situations and suggested methods for deployment of the vNetwork Distributed Switch:

vds2

Use Host Profiles to deploy vStorage Policies

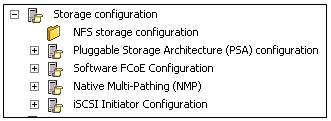

You can configure storage options, including

  • Native Multi-Pathing (NMP)
  • Pluggable Storage Architecture (PSA)
  • FCoE adapters
  • iSCSI adapters
  • NFS storage

Capture

Caveats

  • Use the vSphere CLI to configure or modify the NMP and PSA policies on a reference host first, and then extract the host profile from that host. If you use the Profile Editor to edit the policies, to avoid compliance failures, make sure that you thoroughly understand interrelationships between the NMP and PSA policies and the consequences of changing individual policies. For information on the NMP and PSA, see the vSphere Storage documentation.
  • Setting values for the Initiator IPv6 Address and Initiator IPv6 Prefix options in a host profile with independent hardware iSCSI adapters has no effect on the HBA because no independent iSCSi HBAs have IPv6 support.

Implement and Maintain Host Profiles

February 6, 2013 Objective 5 Operational Maintenance No comments

h2p

What are Host Profiles?

The host profiles feature creates a profile that encapsulates the host configuration and helps to manage the host configuration, especially in environments where an administrator manages more than one host or cluster in vCenter Server.
Host profiles eliminates per-host, manual, or UI-based host configuration and maintains configuration consistency and correctness across the datacenter by using host profile policies. These policies capture the blueprint of a known, validated reference host configuration and use this to configure networking, storage, security, and other settings on multiple hosts or clusters. You can then check a host or cluster against a profile’s configuration for any deviations.

Workflow
You perform host profiles tasks in a certain workflow order. You must have an existing vSphere installation with at least one properly configured host.

  • Set up and configure the host that will be used as the reference host. A reference host is the host from which the profile is created.
  • Create a profile using the designated reference host.
  • Attach a host or cluster to the profile.
  • Check the host’s compliance to the reference host’s profile. If all hosts are compliant with the reference host, they are correctly configured.
  • Apply the host profile of the reference host to other hosts or clusters of hosts.

Instructions for creating Host Profiles

  • Go to the Home Page in vClient and click on Host Profiles
  • Click Create a New Profile

Profile1

  • Create a new Profile or import a Profile

Profile2

  • Put a name and description in

Profile3

  • Click Next and Review the Summary > Finish

Profile4

  •  Once it has created the profile click Edit to edit the profile

Profile5

Attach a profile to one or more Hosts/Cluster

  • Click Attach Host/Cluster
  • Select Hosts or Cluster

attachhost

Check Compliance

When you have first added a host or cluster to your profile, it will look like this

ComplianceHost

  • Highlight a host or your cluster and click Check Compliance
  • I have made a deliberate error so it shows Non Compliant as per below

ComplianceFailure1

  • The Compliance Failure shows as per below screenprint

ComplianceFailure

  • After rectifying the DNS errors and turning off SSH in the Security Profile on my reference host, I now need to right click on my Host Profile and select Update Profile
  • Then Enter Maintenance Mode on my Non-Compliant Host
  • And re-apply the host profile
  • Check Compliance (Hurrah!)

Compliant2

  • Exit Maintenance Mode
  • it should now look like the below

Compliant4

Create Sub-Profiles

On the left side of the Profile Editor, you can expand the host profile. Each host profile is composed of several Sub-Profiles that are designated by functional group to represent configuration instances. Sub-Profiles are for e.g.

  • Storage configuration
  • Networking configuration
  • Date and time configuration
  • Firewall configuration
  • Security Configuration

Each Sub-Profile contains many policies and compliance checks that describe the configuration that is relevant to the profile. Each policy consists of one or more options that contains one or more parameters

  • Open the Profile Editor for the profile you wish to edit (as outlined above)
  • On the left side of the Profile Editor, expand a sub-profile until you reach the policy you want to edit (noted with a “folder” icon)
  • Right click the policy and select “Add Profile

HP

  • A new profile will be created under the given target
  • Highlight the new profile and expand the policy until you see Configuration details

HP3

  • Configure the policy options you want
  • Click OK and Save

Great Youtube Video

http://www.youtube.com/watch?v=tDDK97MR-HU&feature=channel_page
