Ingress and Egress Traffic Shaping

The terms Ingress source and Egress source are with respect to the VDS.

For example:

Ingress – When you want to monitor the traffic that is going out of a virtual machine towards the VDS, it is called Ingress Source traffic. The traffic seeks ingress to the VDS and hence the source is called Ingress.

Egress – When you want to monitor the traffic that is going out of the VDS towards the VM, it is called egress

Traffic Shaping concepts:

Average Bandwidth: Kbits/sec

Target traffic rate cap that the switch tries to enforce. Every time a client uses less than the defined Average Bandwidth, credit builds up.

Peak Bandwidth: Kbits/sec

Extra bandwidth available, above the Average Bandwidth, for a short burst. The availability of the burst depends on credit accumulated so far.

Burst Size: Kbytes

Amount of traffic that can be transmitted or received at Peak speed (Combining Peak Bandwidth and Burst Size you can calculate the maximum allowed time for the burst

Traffic Shaping on VSS and VDS

VSS

Traffic Shaping can be applied to a vNetwork Standard Switch port group or the entire vSwitch for outbound traffic only

VDS

Traffic Shaping can be applied to a vNetwork Distributed Switch dvPort or the entire dvPort Group for inbound and outbound traffic

IOPs

When planning for storage to your VMware architecture, it is easy to focus on the storage capacity dimension rather than focusing on availability and performance

Capacity is generally not the limit for proper storage configurations. Capacity reducing techniques such as deduplication, thin provisioning and compression means you can now use disk capacity far more efficiently than before.

So what are IOP’s?

IOPS (Input/Output Operations Per Second, pronounced eye-ops) are a common performance measurement used to benchmark computer storage devices like hard disk drives (HDD), solid state drives (SSD), and storage area networks (SAN). As with any benchmark, IOPS numbers published by storage device manufacturers do not guarantee real-world application performance

IOPS can be measured with applications, such as Iometer (originally developed by Intel), as well as IOzone and FIO and is primarily used with servers to find the best storage configuration.

The specific number of IOPS possible in any system configuration will vary greatly, depending upon the variables the tester enters into the program, including the balance of read and write operations, the mix of sequential and random access patterns, the number of worker threads and queue depth, as well as the data block sizes.There are other factors which can also affect the IOPS results including the system setup, storage drivers, OS background operations, etc. Also, when testing SSDs in particular, there are preconditioning considerations that must be taken into account.

Computer IOP’s

Virtual Desktops use 5-20 IOP’s

Light Servers use 50-100 IOP’s

Heavy Servers – Require independent measurement for true accuracy

Storage Drive IOP’s

Enterprise Flash Drives = 1000 IOP’s pr drive

FC 15K RPM SAS Drives = 180 IOP’s per drive

FC 10K RPM SAS Drives = 120 IOP’s per drive

10K RPM SATA Drives = 125-150 IOP’s per drive

7K RPM SATA Drives = 75-100 IOP’s per drive

5.4K RPM SATA Drives = 80 IOPS per drive

Performance Characteristics

The most common performance characteristics measured are sequential and random operations.

  • Sequential operations access locations on the storage device in a contiguous manner and are generally associated with large data transfer sizes, e.g. 128 KB.
  • Random operations access locations on the storage device in a non-contiguous manner and are generally associated with small data transfer sizes, e.g. 4 KB.

Useful Performance Link

http://kb.vmware.com/selfservice/microsites/search.do?language=en_US&cmd=displayKC&externalId=1031773

Network Time Sync for VMware ESXi Hosts

In a virtual infrastructure, network time synchronization is critical to keep servers on the same schedule as the services they rely on. For VMware ESXi hosts, you can implement Network Time Protocol (NTP) synchronization using the vSphere Client.

More on VMware networking

There are many reasons you should synchronize time for ESXi hosts. If they are integrated with Active Directory, for instance, you need time to be properly synchronized. You also need the time to be consistent when creating and resuming snapshots, because snapshots take point-in-time images of the server state. Luckily, setting up network time synchronization with the vSphere Client is pretty easy.

VMware network time synchronization: A walkthrough

To configure NTP synchronization, select the host, and on the Configuration tab, select Time Configuration under Software. You’ll now see the existing time synchronization status on that host. Next, click Properties. This selection shows the Time Configuration screen, where you can see the current time on the host. Make sure it’s not too different from the actual time, because a host that’s more than 1,000 seconds is considered “insane” and won’t synchronize.

After you set the local time on the host, select NTP Client Enabled. This activates NTP time synchronization for your host. Reboot the server, then go to Options to make sure NTP has been enabled. This gives you access to the NTP Startup Policy, where you should select “Start and stop with host.”

You’re not done with network time synchronization yet, though. Now, you need to choose NTP servers that your VMware ESXi hosts should synchronize with. Click NTP Settings and you’ll see the current list of NTP servers. By default, it’s empty. Click Add to add the name or address of the NTP server you’d like to use. The interface prompts you for an address, but you can enter a name that can be resolved by DNS as well.

If you’re not sure which NTP server to use for VMware network time synchronization, the Internet NTP servers in pool.ntp.org work well. You only need to choose one server from this group to add to the NTP servers list. If you want to synchronize with an internal or proprietary NTP server, however, you should specify at least two NTP servers.

At this point, make sure the option to restart the NTP server is selected. Click OK three times to save and apply your changes. From the Configuration screen on your ESXi host, you should now see that the NTP Client is running, and it will also show the list of current NTP servers your host is using.

With your ESXi hosts synchronized to the correct time, all the services and events that depend on time will function properly. More importantly, you won’t waste any more time because of misconfigured network time

Whats the diffference between VMware vCLI and VMware PowerCLI

To automate the management of an ESXi deployment, VMware has created easy-to-use scripting tools for managing day-to-day operations. You can write scripts with the same functionality as the vSphere client to automate manual tasks , allowing you to manage small- to large-scale environments efficiently. These tools work well with both ESXi and ESX hosts, allowing you to easily administer mixed environments.

Both PowerCLI and vCLI are built on the same interface as the vSphere Client. They can be pointed directly at an ESXi host or they can be pointed at vCenter. When pointed at a host, they can execute commands directly on an ESXi host, similar to how a command in the Console OS of ESX operates on only that host. Local authentication is required in this case. Alternatively, when communicating through vCenter, the vCLI and PowerCLI commands benefit from the same authentication (e.g. Active Directory), roles and privileges, and event logging as vSphere Client interactions. This provides for a much more secure and audit-able management framework

VMware vSphere™ PowerCLI

VMware vSphere PowerCLI is a powerful command line tool for automating all aspects of vSphere management, including host, network, storage, VM, guest OS and more. PowerCLI is distributed as a Windows PowerShell snapin, and includes more than 150 PowerShell cmdlets, along with documentation and samples. PowerCLI seamlessly blends the vSphere platform with Windows and .NET, which means you can use PowerCLI by itself or within many different 3rd-party tools

VMware vSphere™ Command Line Interface (vCLI)

VMware vSphere™ Command Line Interface (vCLI) is a set of command-line utilities that help you provision, configure and maintain your ESX and ESXi hosts. The vCLI command set allows you to run common system administration commands against VMware ESXi systems from any machine with network access to those systems. You can run most vCLI commands against a vCenter Server system and target any ESXi system that the vCenter Server system manages. There are commands that can completely automate the initial configuration of an ESXi host and others that provide troubleshooting and diagnostic capabilities. VMware provides vCLI packages for installation on both Windows and Linux systems

VMware vSphere™ Management Assistant (vMA)

The VMware vSphere™ Management Assistant (vMA) is a virtual appliance that brings together all the tools you need to manage vSphere. vMA packages the vSphere Command Line Interface, the vSphere SDK for Perl, as well as logging and authentication modules into one convenient bundle. vMA can also host 3rd-party agents for added management power.

And another Dilbert

NTFS Permissions after copying or moving Files

Useful for Reference.

Copying Files and Folders

When copying folder or files from one folder to another folder or from one partition to another partition, permissions for this files or folders may change.

  1. When copying a folder or file within same NTFS partition, the copy of the folder or file inherits the destination folder permissions
  2. When copying a folder or file between different NTFS partitions, the copy of the folder or file inherits the destination folder permissions.
  3. When copying folders or files to non NTFS partitions such as File Allocation table (FAT), the files or folders will lose their all NTFS permissions.

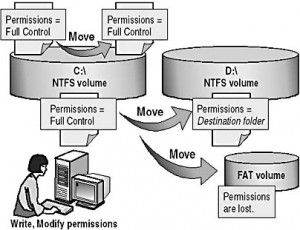

Moving Files and Folders

When moving a file or a folder, permissions may get changed depending on the destination folder permissions.

Note: To move folders and files within an NTFS partitions you must have both permissions, for the destination folder you should have write permission and modify permissions for source file or folder to configure the options. You need to have modified permission for folder or file to move as Windows 2000 will remove the file or folder from the main folder after copying it to the folder destination.

  1. When moving a file to a folder within the same NTFS partition, the folder or file will retains its original permissions.
  2. When moving a folder or file between different NTFS partitions, the file or folder will inherit the destination folder permissions.
  3. When moving files to folders on NTFS partitions to non NTFS partitions the folders and files will lose their all NTFS permissions, as NTFS permissions are not supported by non NTFS partitions.

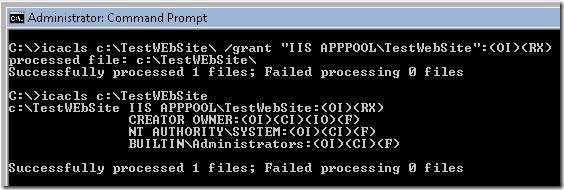

ICACLS Permissions

In my last role, we had to create large folder structures including permissioning very quickly in Windows 2008 R2 and as a result we came across ICALCS which proved very useful .

ICACLS name /save aclfile [/T] [/C]

Store the acls for all matching file/folder names into aclfile for later use with /restore.

ICACLS directory [/substitute SidOld SidNew […]] /restore aclfile [/C]

Applies the stored acls to files in directory.

ICACLS name /setowner user [/T] [/C]

Changes the owner of all matching names.

ICACLS name /findsid Sid [/T] [/C]

Finds all matching names that contain an ACL explicitly mentioning Sid.

ICACLS name /verify [/T] [/C]

Finds all files whose ACL is not in canonical form or whose lengths are inconsistent with ACE counts.

ICACLS name /resize [/T] [/C] [/L]

Changes incorrect recorded lengths of ACLs to true lengths.

ICACLS name /reset [/T] [/C]

Replaces acls with default inherited acls for all matching files.

ICACLS name [/grant[:r] Sid:perm[…]]

                       [/deny Sid:perm […]]

                       [/remove[:g|:d]] Sid[…]] [/T] [/C]

With :r, the permissions replace any previously granted explicit permissions.

Without :r, the permissions are added to any previously granted explicit permissions.

/deny Sid:perm explicitly denies the specified user access rights.

An explicit deny ACE is added for the stated permissions and the same permissions in any explicit grant are removed.

/remove[:[g|d]] Sid removes all occurrences of Sid in the acl.

With :g, it removes all occurrences of granted rights to that Sid.

With :d, it removes all occurrences of denied rights to that Sid.



Note:

Sids may be in either numeric or friendly name form. If a numeric form is given, affix a * to the start of the SID.

/T indicates that this operation is performed on all matching files/directories below the directories specified in the name.

/C indicates that this operation will continue on all file errors.

Error messages will still be displayed.



ICACLS preserves the canonical ordering of ACE entries:

Explicit denials

Explicit grants

Inherited denials

Inherited grants



Perm is a permission mask and can be specified in one of two forms:

1. A sequence of simple rights:

F – full access

M – modify access

RX – read and execute access

R – read-only access

W – write-only access



2. A comma-separated list in parentheses of specific rights:

D – delete

RC – read control

WDAC – write DAC

WO – write owner

S – synchronize

AS – access system security

MA – maximum allowed

GR – generic read

GW – generic write

GE – generic execute

GA – generic all

RD – read data/list directory

WD – write data/add file

AD – append data/add subdirectory

REA – read extended attributes

WEA – write extended attributes

X – execute/traverse

DC – delete child

RA – read attributes

WA – write attributes



Inheritance rights may precede either form and are applied only to directories:

(OI) – object inherit

(CI) – container inherit

(IO) – inherit only

(NP) – don’t propagate inherit



Examples:

icacls c:\windows\* /save AclFile /T

– Will save the ACLs for all files under c:\windows and its subdirectories to AclFile.

icacls c:\windows\ /restore AclFile

– Will restore the Acls for every file within AclFile that exists in c:\windows and its subdirectories

icacls file /grant Administrator:(D,WDAC)

– Will grant the user Administrator Delete and Write DAC permissions to file

icacls file /grant Administrator:(OI)(CI)M

– Will grant the user Administrator Modify permissions to the file and ripple this downwards for file and folder permissions

icacls file /grant *S-1-1-0:(D,WDAC)

– Will grant the user defined by sid S-1-1-0 Delete and Write DAC permissions to file



Folder Path Spaces

If there are spaces in the folder path names, you will need to put quotes in as follows

ICACLS “C:\Test Folder\Second Part\Third Part” /grant user123:(OI)(CI)R

Dilbert

Mastering VMware vSphere 5.0

This book has proved invaluable to my understanding of VMware. Well recommended.

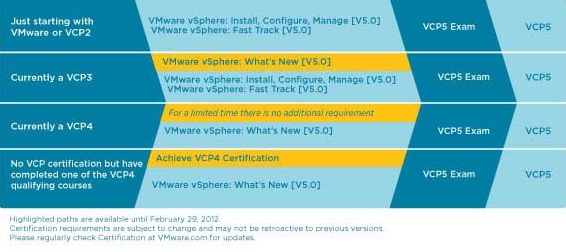

VMware VCP 5.0 Certification

VMware offers world-class certifications designed to validate and recognize IT professionals with the technical capabilities and real-world experience needed to effectively install, manage, deploy and support VMware products and solutions. VMware certifications are available in two areas of virtualization: Datacenter and Desktop. Each specialty is broken down into three distinct certification levels reflective of skill and competency level.

http://www.vmware.com/certification

Please see the below Link for the Exam Blueprint

http://communities.vmware.com/docs/DOC-16726

The VCP510 exam consists of 85 questions and a short pre-exam survey consisting of 8 questions.

The passing score for this exam is 300, using a scaled scoring method. The scale is from 100-500. Scaled scores are calculated using a mathematical formula that considers a variety of factors, including the number and type of exam questions included in a specific version of the exam. Because this combination may vary in different versions of the same examination, scaled scores provide a fair score for each individual based on the version of the exam taken.

The below links are the recommended documents from the Blueprint

VMware vSphere Basics

vSphere Installation and Setup Guide

vCenter Server and Host Management Guide

VMware Virtualisation Toolkit

vSphere Upgrade Guide

VMware vSphere Examples and Scenarios

Installing and Administering VMware vSphere Update Manager

vSphere Security Guide

VMware vCloud – Requirements for a Cloud

VMware vCloud – Service Definition for a Public Cloud

VMware vCloud – Service Definition for a Private Cloud

 vSphere 5.0 Licensing, Pricing and Packaging Whitepaper

 vSphere Networking guide

vSphere Storage Guide

VMware vSphere Storage Appliance Installation and Configuration guide

VMware vSphere Storage Appliance Administration guide

vSphere Virtual Machine Administration guide

Installing and Configuring VMware Tools Guide

OVF Tool User Guide

vSphere Availability guide

vSphere Resource Management guide

VMware Data Recovery Administration guide

vSphere Host Profiles guide

Reconfiguring VMware vSphere Update Manager

vSphere Monitoring and Performance guide

vSphere Troubleshooting guide

vSphere Resource Management guide
